Shopify

Keep your storefront up-to-date with the latest customer and product info from your data warehouse

Shopify will be deprecating their REST API and recommends their new GraphQL API. Hightouch supports using these new GraphQL endpoints for new syncs, and existing syncs can be updated to use the GraphQL endpoints.

Overview

This destination lets you send customer, product, and fulfillment information from your data warehouse to Shopify so you never have to worry about stale inventory information or incorrect customer or product details.

GraphQL vs REST API

Shopify will be deprecating their REST API in favor of their new GraphQL API. For more detailed information on this update, and how object types and inputs have changed, refer to this Shopify resource. Hightouch allows syncs to use either protocol for the time being, and you can change between the two protocols to see the differences between them. Most notably, the GraphQL endpoints use new object types Product Variant and Product Option that were previously coupled together for the REST API. They are now separate Object types to sync to based on existing Products in your shop.

Supported syncing

Sync Type	Description	Supported Sync Modes
Objects	Sync data from any source to customer, discount, inventory item, inventory level, and product objects	Varies depending on object
Events	Send fulfillment events to Shopify	Insert
Actions	Sync data from any source to any various Shopify actions	Insert

Connect to Shopify

Go to the Destinations overview page and click the Add destination button. Select Shopify. You then need to provide an Admin API Access Token and your Store Name.

Create Admin API access token

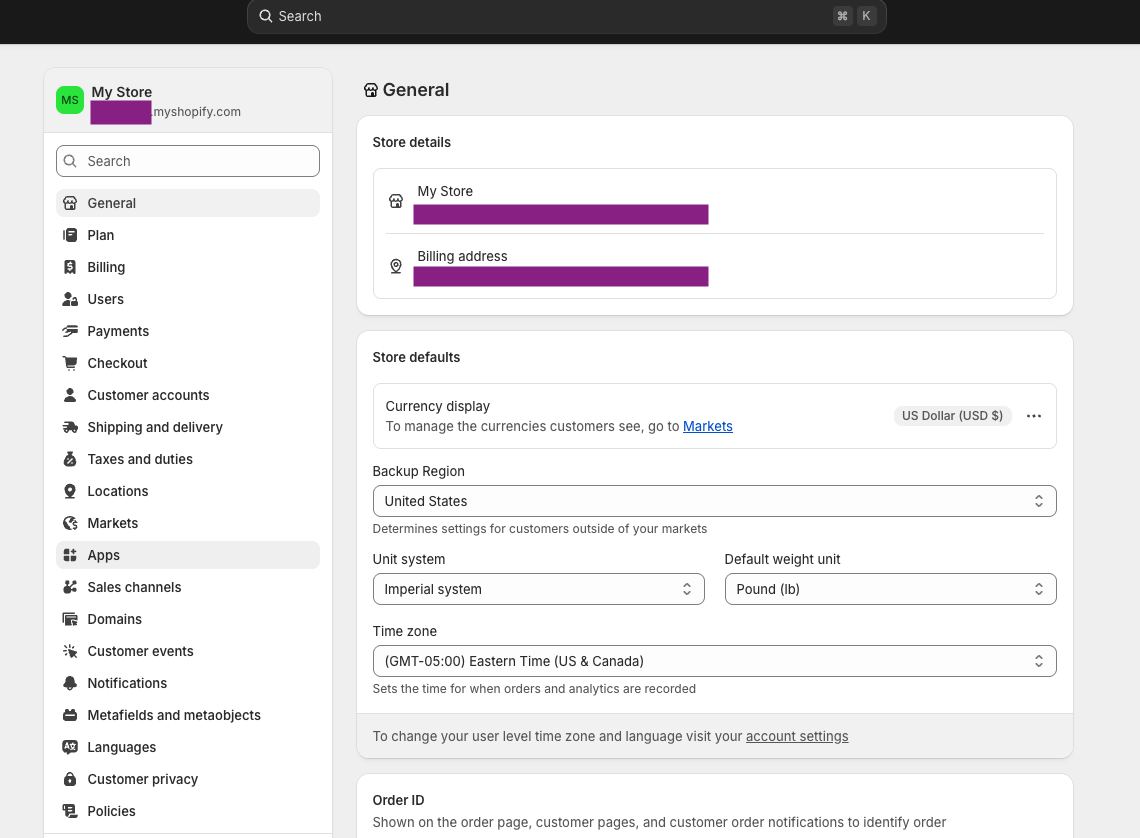

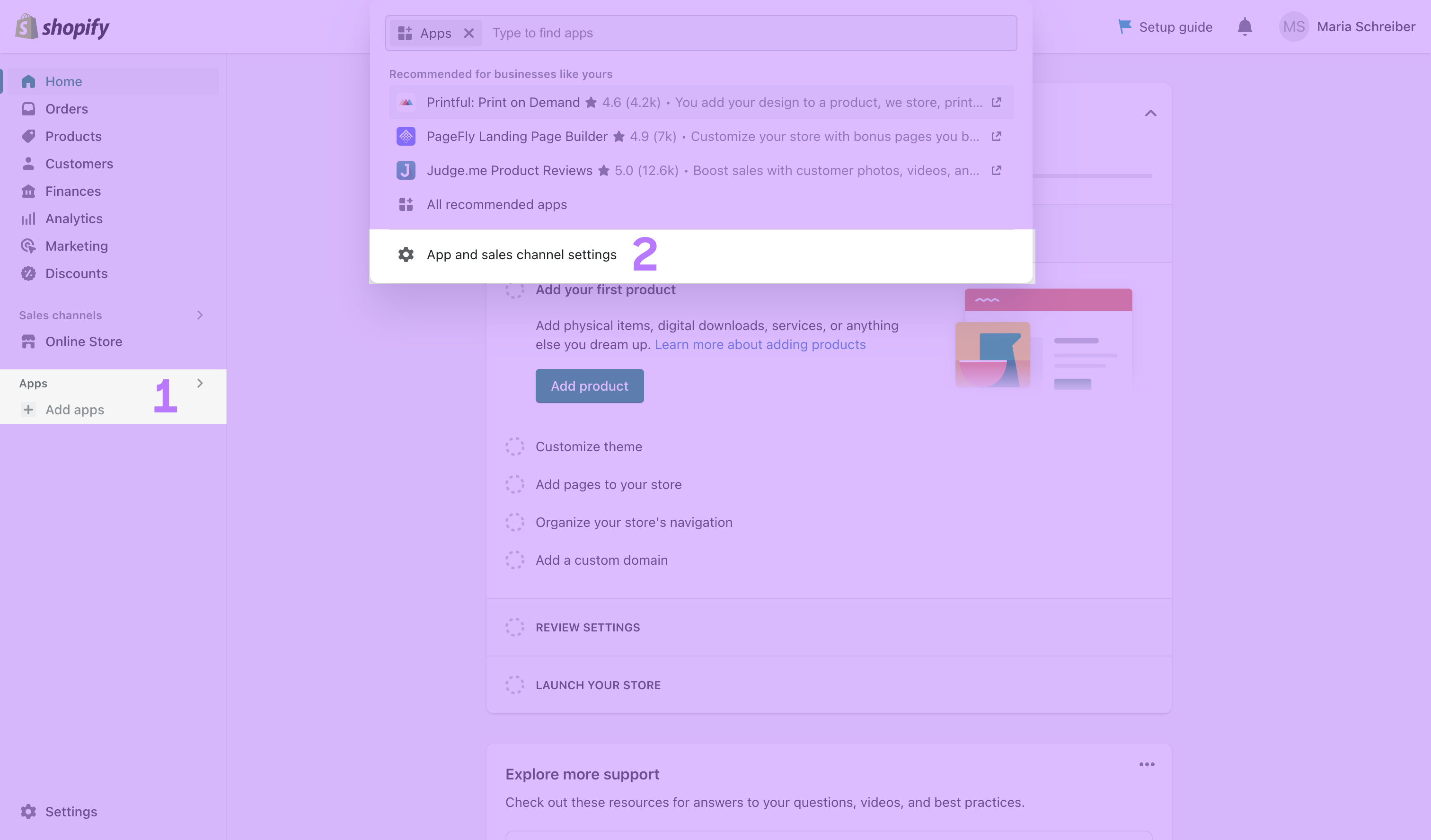

In your Shopify store's admin, click Apps in the left sidebar.
From the dropdown which appears, select Apps and sales channel settings.

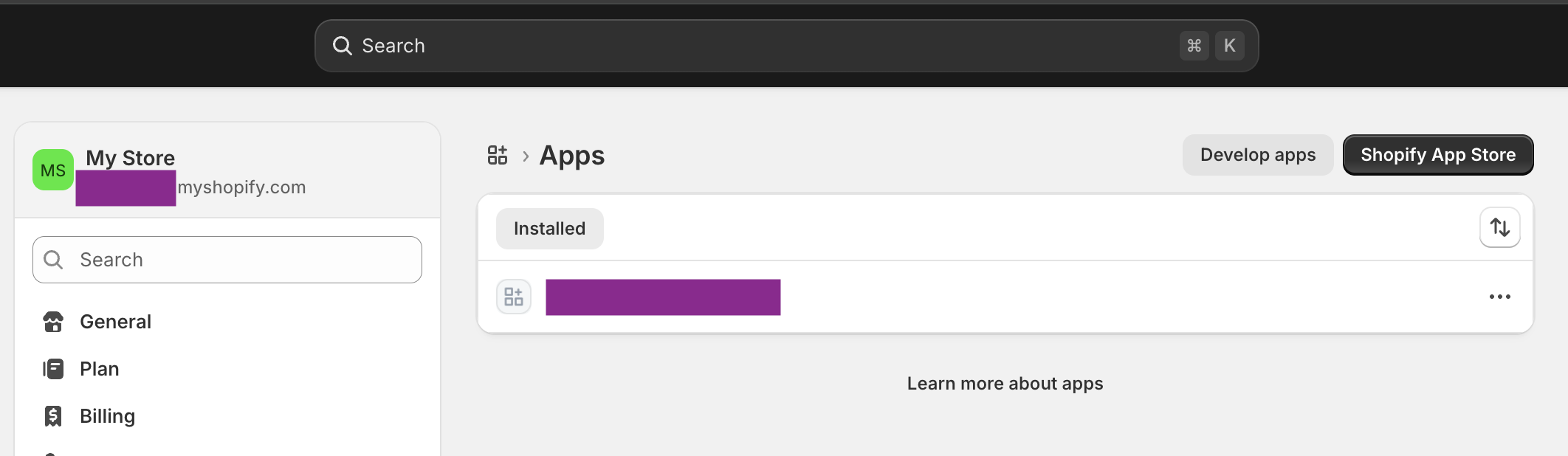

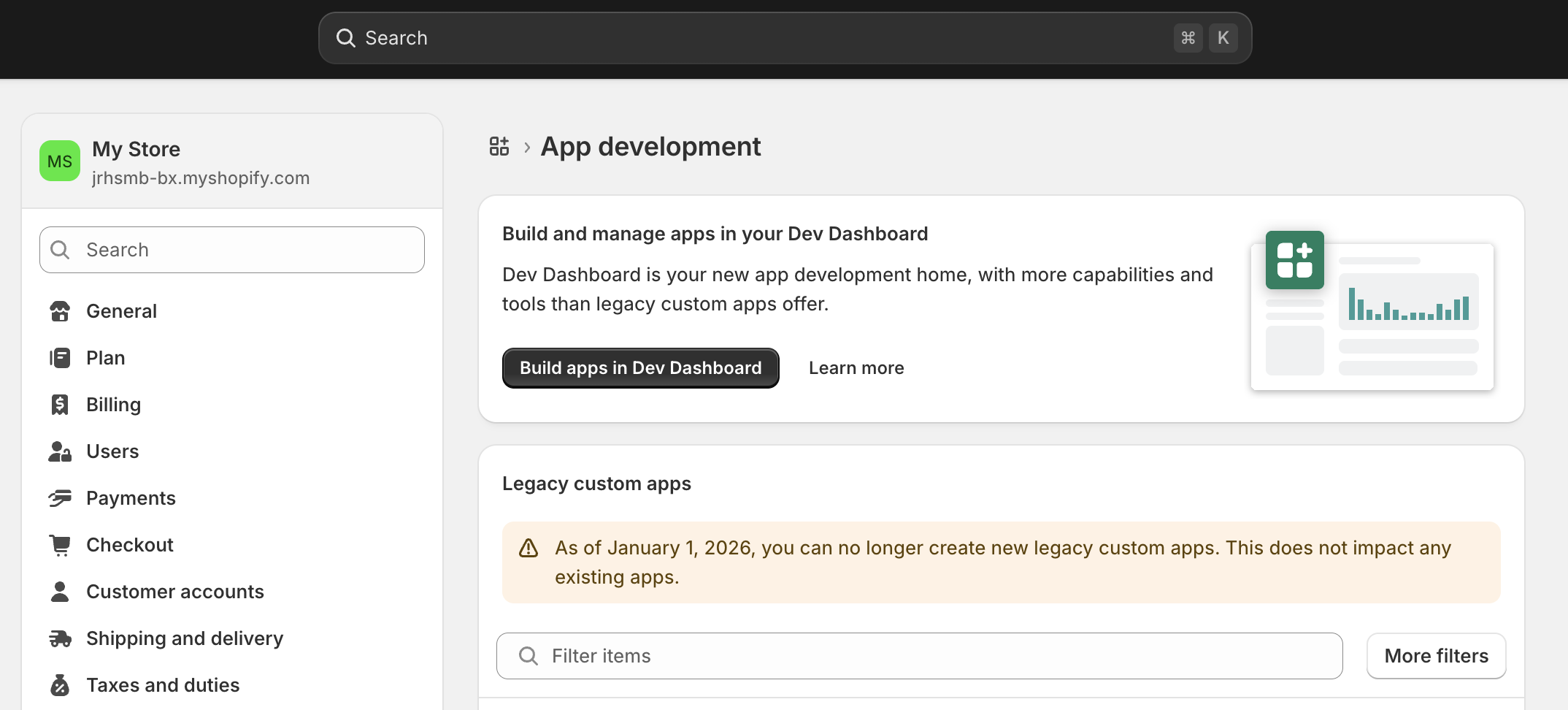

Click Develop apps for your store.

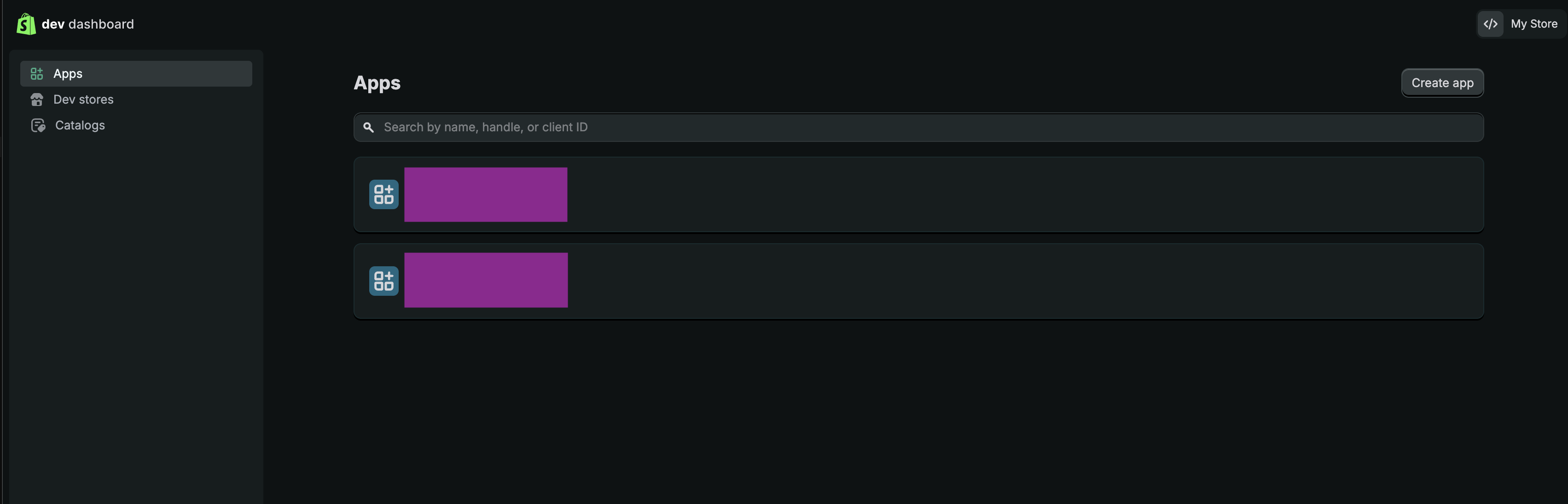

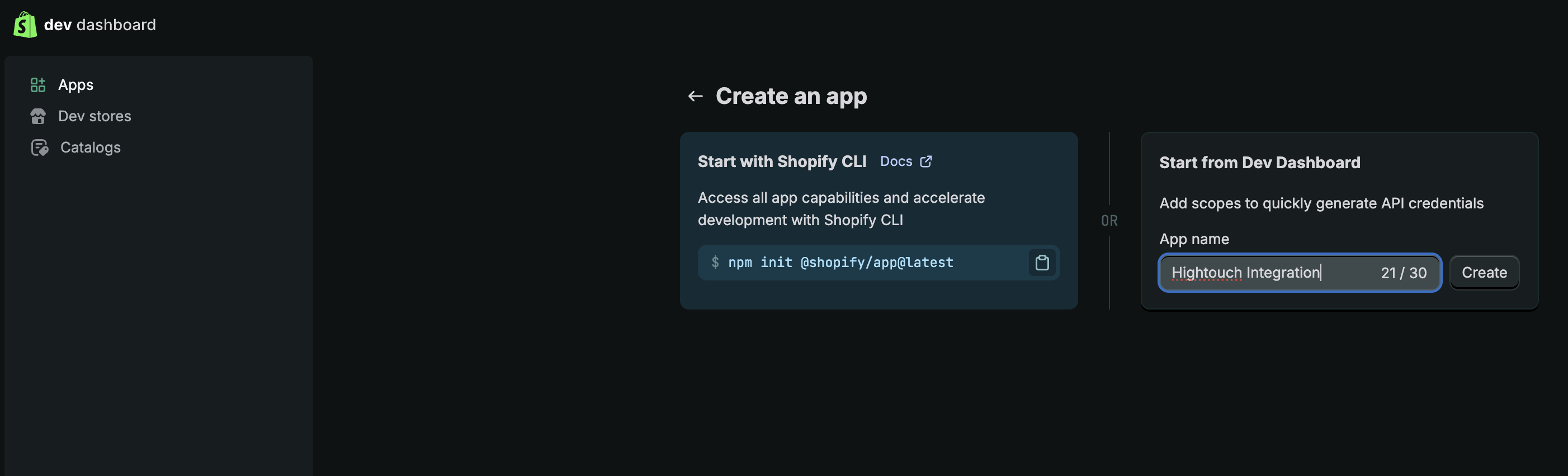

On the next screen, click Create an App in the top right corner. Give it a descriptive name, for example, "Hightouch integration." Then click Create app.

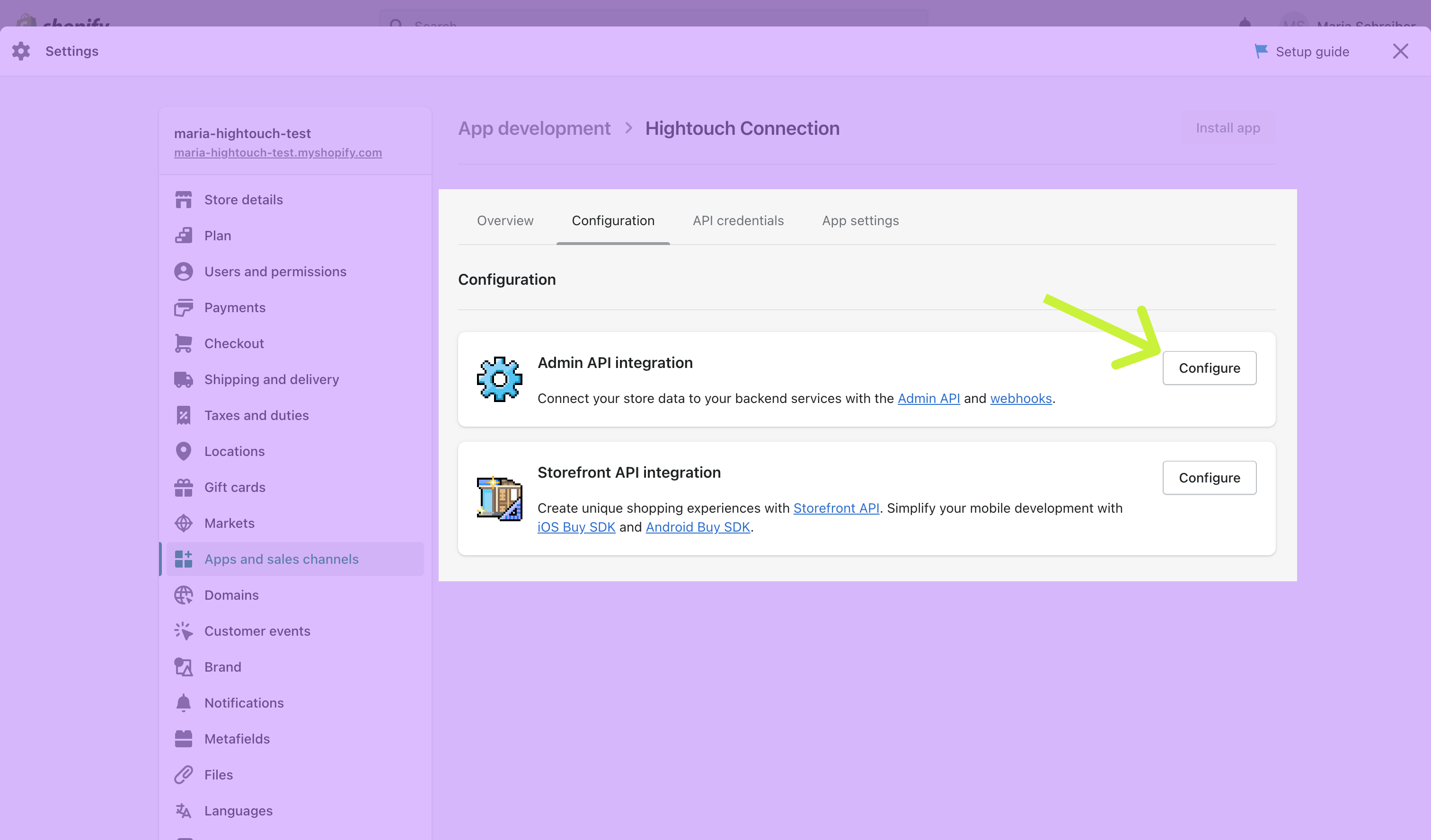

Under Configuration tab, select Configure to configure the Admin API Integration.

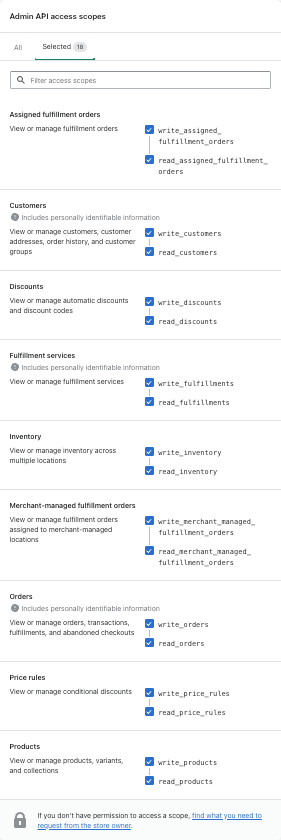

Select the following Admin API access scopes:
- write_customers
- read_customers
- write_discounts
- read_discounts
- write_inventory
- read_inventory
- write_price_rules
- read_price_rules
- write_products
- read_products
- write_assigned_fulfillment_orders
- read_assigned_fulfillment_orders
- write_merchant_managed_fulfillment_orders
- read_merchant_managed_fulfillment_orders
- write_orders
- read_orders
Click Save in the bottom right of the screen.
In API Credentials tab, click Install app, and then Install in the modal that appears.

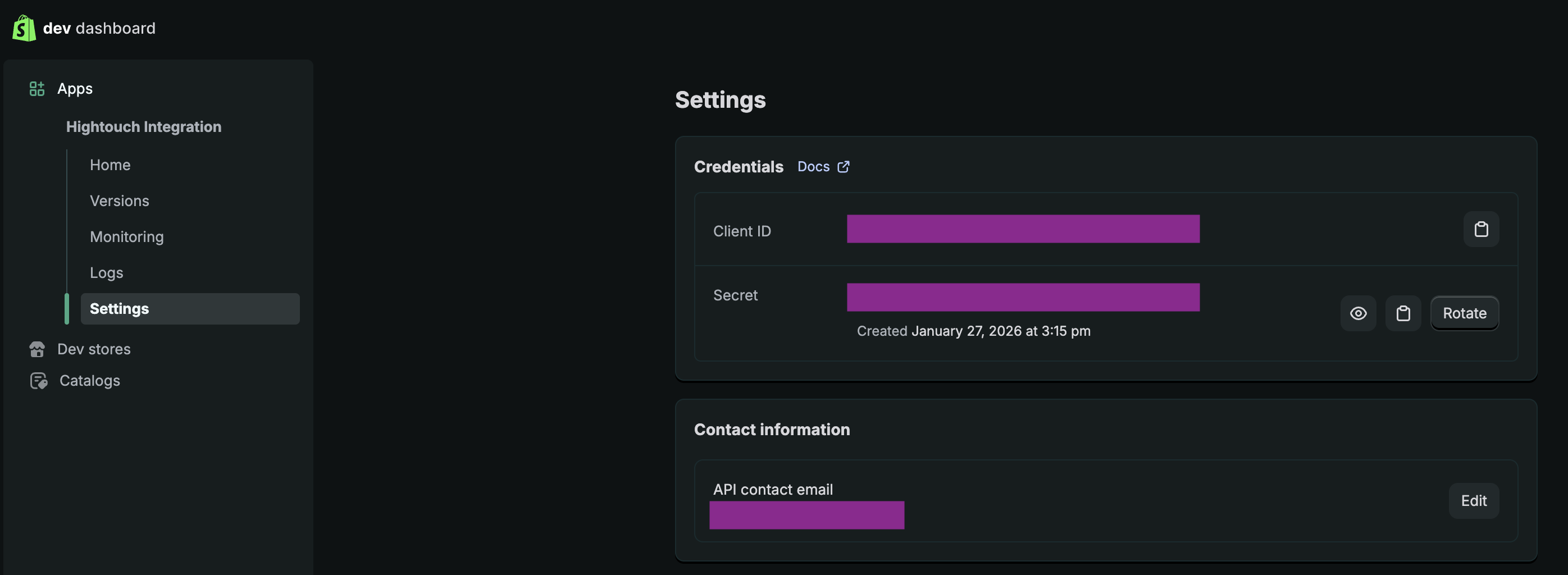

Your Admin API Access Token is now available. Copy and save your Admin API access token in a secure place.

Sync configuration

Once you've set up your Shopify destination and have a model to pull data from, you can set up your sync configuration to begin syncing data. Go to the Syncs overview page and click the Add sync button to begin. Then, select the relevant model and the Shopify destination you want to sync to.

Objects

Hightouch supports syncing to these Shopify objects with the following sync modes:

Sync Type	Supported Sync Modes
Customers	Upsert, Update, and Insert
Discounts	Update and Insert
Inventory Item	Update only
Inventory Level (REST API only)	Upsert, Update, and Insert
Products	Upsert, Update, and Insert

Check out the sync modes docs to learn more.

Record matching

Based on the Shopify object, database records can be matched from your source to your Shopify workspace by a unique property.

Sync Type	Supported Identifiers
Customers	Email, ID, or phone
Discounts	ID
Inventory Item	Inventory item ID
Inventory Level	Inventory item ID
Products	Handle

Field mapping

You can sync columns from your source to Shopify's default and custom fields.

You must provide a Price Rule ID from an existing PriceRule when syncing Discounts. Similarly, you must provide an Inventory Item ID from an existing Product when syncing either Inventory Item or Inventory Level.

Delete behavior

For Products (for the REST API protocol only), you can choose what Hightouch's behavior is when a record leaves the query result set.

Behavior	Description
Do nothing	Keep the product in your shop
Delete the Shopify product	Remove the product from your shop

Events

Hightouch supports syncing to these Shopify events with the following sync modes:

Sync Type	Supported Sync Modes
Fulfillment event	Insert only

To ensure syncs send each event, your event model must use a truly unique primary key. See the events syncs documentation for more information.

Field mapping

You need to include at least the Fulfillment ID, Order ID, and Status in your sync. Other field mappings are optional.

Actions

Hightouch supports syncing to these Shopify events with the following sync modes:

Sync Type	Supported Sync Modes
Cancel fulfillment orders	Insert only
Mark fulfillment orders as incomplete	Insert only
Apply fulfillment hold on fulfillment orders with status `Open`	Insert only
Move fulfillment orders to another location	Insert only
Mark fulfillment orders as open	Insert only
Release the fulfillment hold on fulfillment orders	Insert only
Reschedule the time of scheduled fulfillment orders	Insert only

To ensure syncs send each action, your event model must use a truly unique primary key. See the events syncs documentation for more information.

Field mapping

Each action requires you to include at least the Fulfillment Order ID. Some actions require additional fields:

Action	Additional required fields
Apply fulfillment hold on fulfillment orders with status `Open`	Reason
Move fulfillment orders to another location	New Location ID
Reschedule the time of scheduled fulfillment orders	New Fulfill At
