Sync your warehouse data to your Smartsheet sheets

Supported syncing

TypeDescriptionSupported Sync ModesAPI Reference
SheetsSync data to sheets in SmartsheetUpsert, Update, InsertSmartsheet API Reference

For more information about sync modes, refer to the sync modes docs.

Connect to Smartsheet

Go to the Destinations overview page and click the Add destination button. Select Smartsheet and click Continue. You can then authenticate Hightouch to Smartsheet with either a Smartsheet API key or with OAuth.

Authenticate with API key

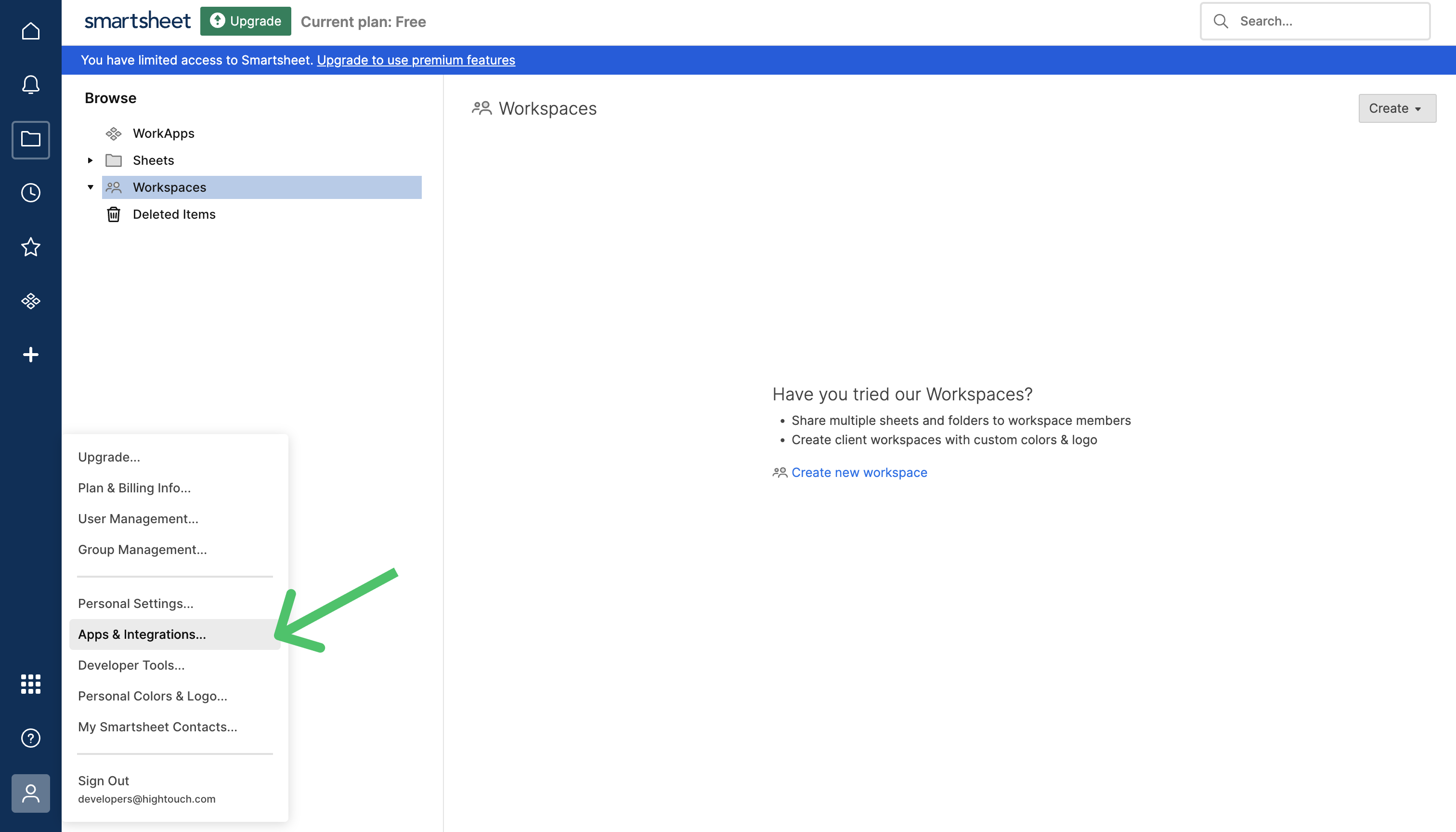

To retrieve an API key, go to your Smarsheet dashboard. Select Account > Apps & Integrations in the side nav.

Smartsheet Dashboard

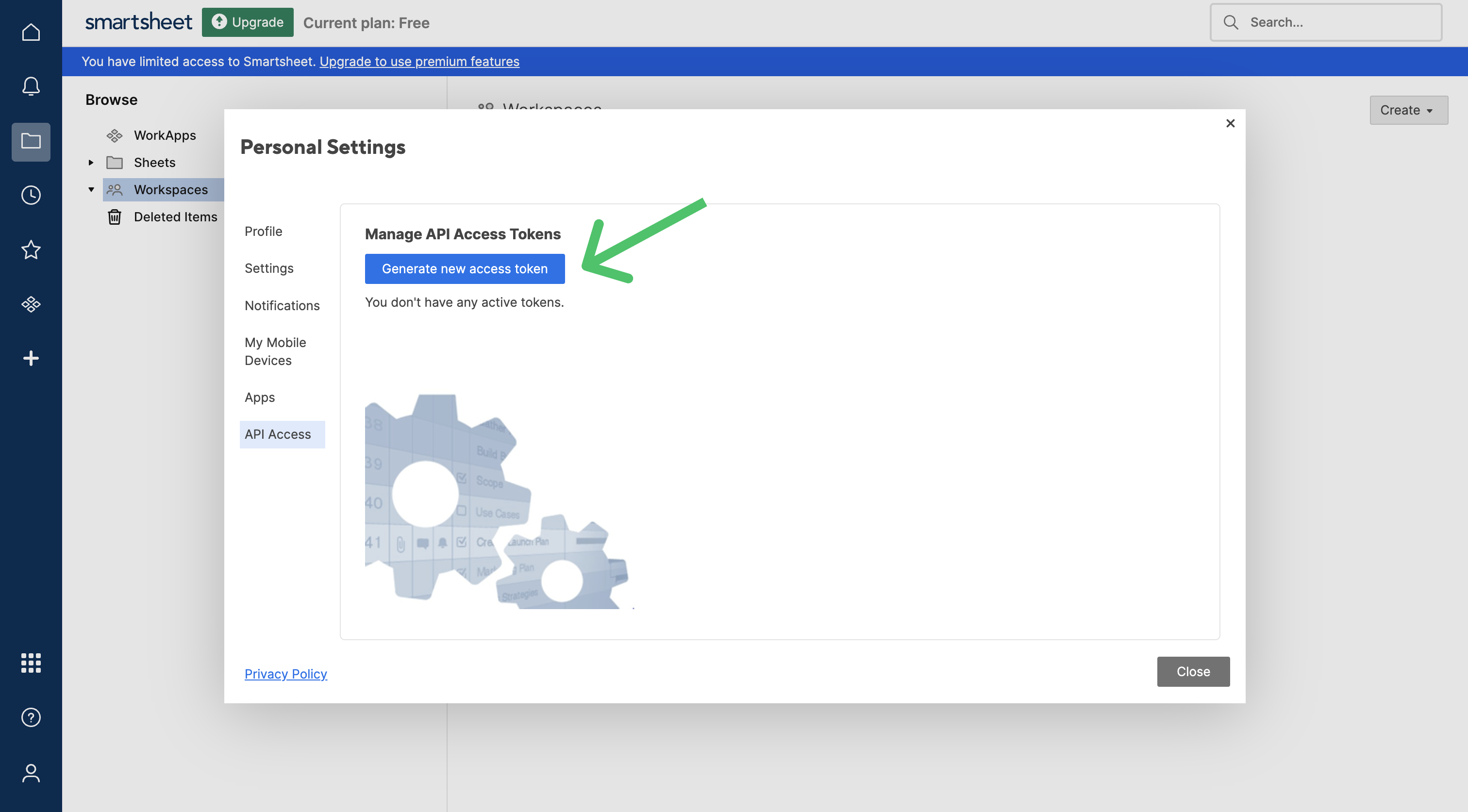

In the Personal Settings form that appears, select API Access. On the API Access tab, you can either generate a new token by clicking Generate new access token or use an existing one.

Smartsheet Dashboard

Enter the access token into API Key field in Hightouch and then click Continue. Enter a descriptive name for your destination, and complete setup.

Authenticate with OAuth

For the Authentication method, select Log in to Smartsheet and log into your Smartsheet account. Once successful, you will be redirected back to Hightouch to enter a descriptive name for your destination and complete setup.

Sync configuration

Once you've set up your Smartsheet destination and have a model to pull data from, you can set up your sync configuration to begin syncing data. Go to the Syncs overview page and click the Add sync button to begin. Then, select the relevant model and the Smartsheet destination you want to sync to.

Syncing rows

Hightouch supports inserting, upserting, and updating data as rows into Smartsheet sheets. In Smartsheet, any data that has been recently created or updated may not be immediately searchable. For more information, see the search sheet section.

Record matching

You can match rows from your model to rows in Smartsheet on any column in your model and any field in Smartsheet. Ensure the data types of the model column and Smartsheet field you select match. Refer to the record matching docs for more information.

In Insert mode, Smartsheet automatically generates an identifier for every new record synced, so there is no need to match an existing record.

Field mapping

You can sync columns from your model to columns within your selected Smartsheet sheet.

Delete behavior

The delete behavior you select dictates what to do when a row no longer appears in your model's query results. You have the following options:

Do nothingKeep the row in Smartsheet with all its synced fields
ClearClear all the mapped fields, but keep the row in Smartsheet
DeleteDelete the synced record from your Smartsheet sheet

Tips and troubleshooting

Common errors

To date, our customers haven't experienced any errors while using this destination. If you run into any issues, please don't hesitate to . We're here to help.

Live debugger

Hightouch provides complete visibility into the API calls made during each of your sync runs. We recommend reading our article on debugging tips and tricks to learn more.

Sync alerts

Hightouch can alert you of sync issues via Slack, PagerDuty, SMS, or email. For details, please visit our article on alerting.

Ready to get started?

Jump right in or a book a demo. Your first destination is always free.

Book a demoSign upBook a demo

Need help?

Our team is relentlessly focused on your success. Don't hesitate to reach out!

Feature requests?

We'd love to hear your suggestions for integrations and other features.

Last updated: May 11, 2023
